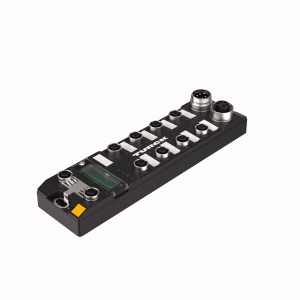

TURCK TBEN-L5-16DOP Block-IO

Compact Multiprotocol I/O Module for Ethernet, 16 Digital PNP 2-A Outputs.

$776.30
Part Numbers
  • TBEN-L5-16DOP
  • 6814087
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • PROFINET device
  • EtherNet/IP device or Modbus TCP slave
  • Integrated Ethernet switch
  • Supports 10 Mbps/100 Mbps
  • 2 × M12
  • 4-pin
  • D-coded
  • Ethernet fieldbus connection
  • PROFINET S2 system redundancy
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65
  • IP67
  • IP69K
  • 7/8 male connector for power supply
  • 5-pin
  • Galvanically isolated voltage groups
  • ATEX Zone 2/22
  • Max. 2 A per output
  • Output diagnostics per channel
  • Programmable ARGEE
  • "
