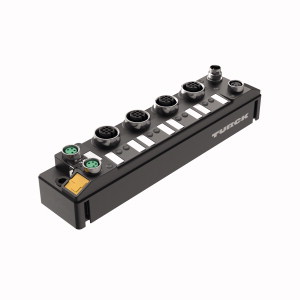

TURCK TBEN-S2-4AO Block-IO

Compact Multiprotocol I/O Module for Ethernet, 4 Analog Outputs, Configurable as Voltage or Current.

$719.20
Part Numbers
  • TBEN-S2-4AO
  • 6814028
Manufactured
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • PROFINET device
  • EtherNet/IP device or Modbus TCP slave
  • Integrated Ethernet switch
  • Supports 10 Mbps / 100 Mbps
  • 2x M8
  • 4-pin
  • Ethernet fieldbus connection
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65
  • IP67
  • IP69K
  • 4-pin M8 male connector for power supply
  • Galvanically isolated voltage groups
  • ATEX Zone 2/22
  • Each channel can be selected for voltage
  • Output ranges:
  • Voltage: 0/1…5 V
  • +/-10 V
  • 0/2…10 V
  • Current: 0/4…20 mA
  • Programmable ARGEE
Compact Multiprotocol I/O Module for Ethernet, 4 Analog Outputs, Configurable as Voltage or Current, , PROFINET device, EtherNet/IP device or Modbus TCP slave, Integrated Ethernet switch, Supports 10 Mbps / 100 Mbps, 2x M8, 4-pin, Ethernet fieldbus connection, Glass fiber reinforced housing, Shock and vibration tested, Fully potted module electronics, Protection classes IP65, IP67, IP69K, 4-pin M8 male connector for power supply, Galvanically isolated voltage groups, ATEX Zone 2/22, Each channel can be selected for voltage, Output ranges:, Voltage: 0/1…5 V, +/-10 V, 0/2…10 V, Current: 0/4…20 mA, Programmable ARGEE
