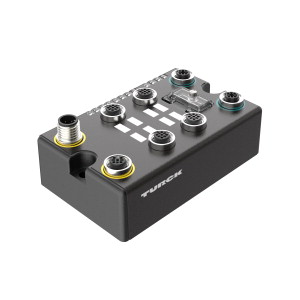

TURCK BLCEC-4M12MT-4AI4AO-VI Block-IO

BL Compact Fieldbus Station for EtherCAT, 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage.

$1,316.40
Part Numbers
  • BLCEC-4M12MT-4AI4AO-VI
  • 6811627
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • EtherCAT™ slave
  • Integrated Ethernet Switch
  • Two 4-pole M12
  • D-coded
  • connectors for fieldbus connection
  • Auto and Fixed addressing
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 4 analog inputs for current or voltage
  • 0/4…20 mA or -10/0…+10 VDC (selectable per channel)
  • 4 analog voltage outputs
  • -10/0…+10 VDC
BL Compact Fieldbus Station for EtherCAT, 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage, On-machine Compact fieldbus I/O block, EtherCAT™ slave, Integrated Ethernet Switch, Two 4-pole M12, D-coded, connectors for fieldbus connection, Auto and Fixed addressing, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 4 analog inputs for current or voltage, 0/4…20 mA or -10/0…+10 VDC (selectable per channel), 4 analog voltage outputs, -10/0…+10 VDC
