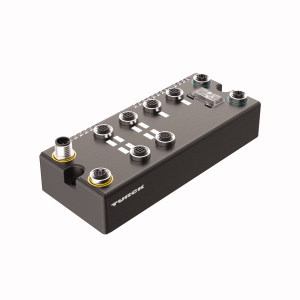

TURCK BLCEN-6M12LT-2AO-I-8XSG-P Block-IO

BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 2 Analog Outputs for Current and 8 Configurable Digital PNP Channels.

$1,047.20
Part Numbers
  • BLCEN-6M12LT-2AO-I-8XSG-P
  • 6811481
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • EtherNet/IP™
  • Modbus® TCP
  • or PROFINET slave
  • Integrated Ethernet Switch
  • 10 Mbps / 100 Mbps supported
  • Two 4-pole M12
  • D-coded
  • connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 Configurable digital PNP channels
  • 24 VDC
  • Max. 0.5A per channel
  • Selection of filtering times (Input delay)
  • Invertible inputs
  • 2 analog current outputs
  • 0/4…20 mA
BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 2 Analog Outputs for Current and 8 Configurable Digital PNP Channels, On-machine Compact fieldbus I/O block, EtherNet/IP™, Modbus® TCP, or PROFINET slave, Integrated Ethernet Switch, 10 Mbps / 100 Mbps supported, Two 4-pole M12, D-coded, connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 8 Configurable digital PNP channels, 24 VDC, Max. 0.5A per channel, Selection of filtering times (Input delay), Invertible inputs, 2 analog current outputs, 0/4…20 mA
