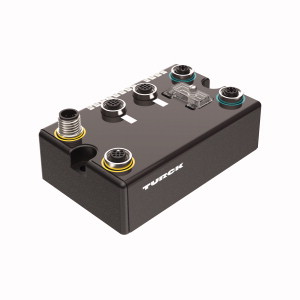

TURCK BLCEN-2M12MT-2AI-PT Block-IO

BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 2 Analog Inputs for Pt and Ni Sensors.

$811.30
Part Numbers
  • BLCEN-2M12MT-2AI-PT
  • 6811464
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • EtherNet/IP™
  • Modbus® TCP
  • or PROFINET slave
  • Integrated Ethernet Switch
  • 10 Mbps / 100 Mbps supported
  • Two 4-pole M12
  • D-coded
  • connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 2 analog inputs for RTDs
  • Pt100
  • Pt200
  • Pt500
  • Pt1000
  • Ni100
  • Ni1000
  • 0…100Ω
  • 0…200Ω
  • 0…400Ω
  • or 0…1000Ω (selectable per channel)
BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 2 Analog Inputs for Pt and Ni Sensors, On-machine Compact fieldbus I/O block, EtherNet/IP™, Modbus® TCP, or PROFINET slave, Integrated Ethernet Switch, 10 Mbps / 100 Mbps supported, Two 4-pole M12, D-coded, connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 2 analog inputs for RTDs, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, 0…100Ω, 0…200Ω, 0…400Ω, or 0…1000Ω (selectable per channel)
