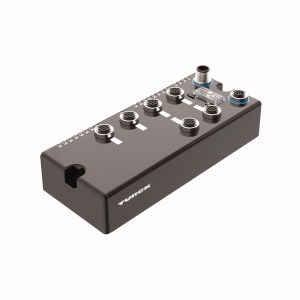

TURCK BLCCO-6M12L-4AI-VI-2AO-I Block-IO

BL compact™ fieldbus station for CANopen, 4 Analog Inputs for Current or Voltage and 2 Analog Outputs for Current.

$1,156.70
Part Numbers
  • BLCCO-6M12L-4AI-VI-2AO-I
  • 6811318
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • CANopen slave
  • 10
  • 20
  • 50
  • 125
  • 250
  • 500
  • 800
  • or 1000 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 4 analog inputs for current or voltage
  • 0/4…20 mA or -10/0…+10 VDC (selectable per channel)
  • 2 analog current outputs
  • 0/4…20 mA
BL compact™ fieldbus station for CANopen, 4 Analog Inputs for Current or Voltage and 2 Analog Outputs for Current, On-machine Compact fieldbus I/O block, CANopen slave, 10, 20, 50, 125, 250, 500, 800, or 1000 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 4 analog inputs for current or voltage, 0/4…20 mA or -10/0…+10 VDC (selectable per channel), 2 analog current outputs, 0/4…20 mA
