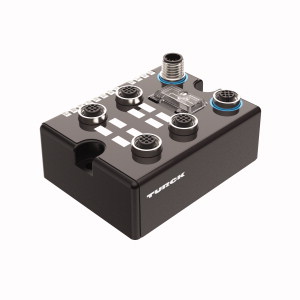

TURCK BLCCO-4M12S-8XSG-P Block-IO

BL compact™ fieldbus station for CANopen, 8 Configurable Digital PNP Channels.

$534.70
Part Numbers
  • BLCCO-4M12S-8XSG-P
  • 6811302
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • CANopen slave
  • 10
  • 20
  • 50
  • 125
  • 250
  • 500
  • 800
  • or 1000 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 Configurable digital PNP channels
  • 24 VDC
  • Max. 0.5A per channel
  • Selection of filtering times (Input delay)
  • Invertible inputs
BL compact™ fieldbus station for CANopen, 8 Configurable Digital PNP Channels, On-machine Compact fieldbus I/O block, CANopen slave, 10, 20, 50, 125, 250, 500, 800, or 1000 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 8 Configurable digital PNP channels, 24 VDC, Max. 0.5A per channel, Selection of filtering times (Input delay), Invertible inputs
