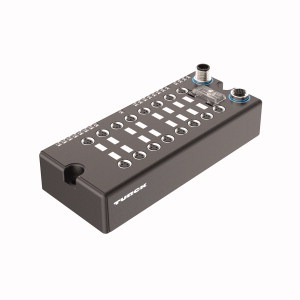

TURCK BLCDN-16M8L-8XSG-P-8XSG-P Block-IO

BL compact™ fieldbus station for DeviceNet™, 16 Configurable Digital PNP Channels.

$1,029.10
Part Numbers
  • BLCDN-16M8L-8XSG-P-8XSG-P
  • 6811073
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • M8 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 16 Configurable digital PNP channels
  • 24 VDC
  • Max. 0.5A per channel
  • Selection of filtering times (Input delay)
  • Invertible inputs
BL compact™ fieldbus station for DeviceNet™, 16 Configurable Digital PNP Channels, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, M8 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 16 Configurable digital PNP channels, 24 VDC, Max. 0.5A per channel, Selection of filtering times (Input delay), Invertible inputs
