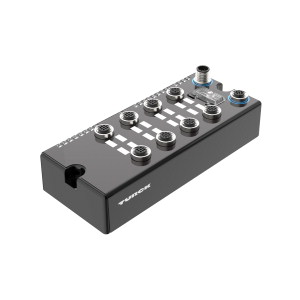

TURCK BLCDN-8M12L-4AI-TC-4AI-TC Block-IO

BL compact™ fieldbus station for DeviceNet™, 8 Analog Inputs for Thermocouple Elements.

$1,408.50
Part Numbers
  • BLCDN-8M12L-4AI-TC-4AI-TC
  • 6811071
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 analog inputs for Thermo Couples
  • Types B
  • C
  • E
  • G
  • J
  • K
  • N
  • R
  • S or T (selectable per channel)
  • Cold-junction compensation via a Pt1000 in special connector
BL compact™ fieldbus station for DeviceNet™, 8 Analog Inputs for Thermocouple Elements, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 8 analog inputs for Thermo Couples, Types B, C, E, G, J, K, N, R, S or T (selectable per channel), Cold-junction compensation via a Pt1000 in special connector
