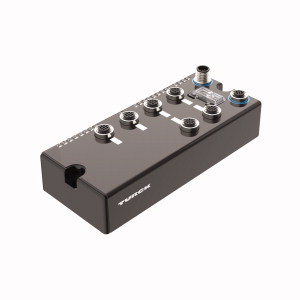

TURCK BLCDN-6M12L-4AI4AO-VI-4DI-P Block-IO

BL compact™ fieldbus station for DeviceNet™, 4 Analog Inputs for Current or Voltage, 4 Analog Outputs for Voltage, and 4 Digital PNP Inputs.

$1,075.10
Part Numbers
  • BLCDN-6M12L-4AI4AO-VI-4DI-P
  • 6811069
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 4 digital PNP inputs
  • 24 VDC
  • 4 analog inputs for current or voltage
  • 0/4…20 mA or -10/0…+10 VDC (selectable per channel)
  • 4 analog voltage outputs
  • -10/0…+10 VDC
BL compact™ fieldbus station for DeviceNet™, 4 Analog Inputs for Current or Voltage, 4 Analog Outputs for Voltage, and 4 Digital PNP Inputs, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 4 digital PNP inputs, 24 VDC, 4 analog inputs for current or voltage, 0/4…20 mA or -10/0…+10 VDC (selectable per channel), 4 analog voltage outputs, -10/0…+10 VDC
