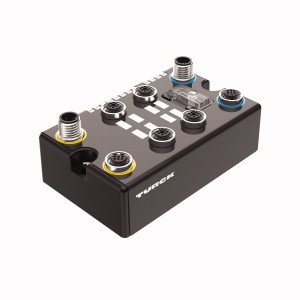

TURCK BLCDN-4M12WMT-4AI4AO-VI/CS30028 Block-IO

BL compact™ fieldbus station for DeviceNet™, 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage.

$963.80
Part Numbers
  • BLCDN-4M12WMT-4AI4AO-VI/CS30028
  • 6811067
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • Reverse keyed M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 4 analog inputs for current or voltage
  • 0/4…20 mA or -10/0…+10 VDC (selectable per channel)
  • 4 analog voltage outputs
  • -10/0…+10 VDC
  • CS30028: Scheduled and summarized diagnostics data disabled (I/O data size reduced)
BL compact™ fieldbus station for DeviceNet™, 4 Analog Inputs for Current or Voltage and 4 Analog Outputs for Voltage, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, Reverse keyed M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 4 analog inputs for current or voltage, 0/4…20 mA or -10/0…+10 VDC (selectable per channel), 4 analog voltage outputs, -10/0…+10 VDC, CS30028: Scheduled and summarized diagnostics data disabled (I/O data size reduced)
