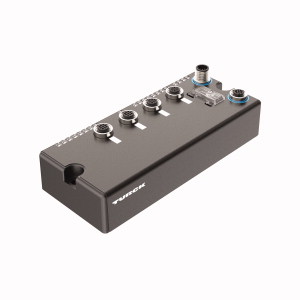

TURCK BLCDN-4M12L-2AI-PT-2AI-PT Block-IO

BL compact™ fieldbus station for DeviceNet™, 4 Analog Inputs for Thermocouple Elements.

$1,075.10
Part Numbers
  • BLCDN-4M12L-2AI-PT-2AI-PT
  • 6811041
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 4 analog inputs for RTDs
  • Pt100
  • Pt200
  • Pt500
  • Pt1000
  • Ni100
  • Ni1000
  • 0…100Ω
  • 0…200Ω
  • 0…400Ω
  • or 0…1000Ω (selectable per channel)
BL compact™ fieldbus station for DeviceNet™, 4 Analog Inputs for Thermocouple Elements, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 4 analog inputs for RTDs, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, 0…100Ω, 0…200Ω, 0…400Ω, or 0…1000Ω (selectable per channel)
