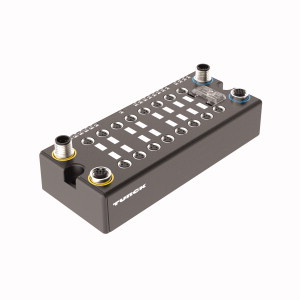

TURCK BLCDN-16M8LT-8DO-0.5A-P-8DO-0.5A-P Block-IO

BL compact™ fieldbus station for DeviceNet™, 16 Digital PNP Outputs.

$1,061.00
Part Numbers
  • BLCDN-16M8LT-8DO-0.5A-P-8DO-0.5A-P
  • 6811030
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • M8 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 16 digital PNP outputs
  • 24 VDC
  • Max. 0.5A per output (4A total)
BL compact™ fieldbus station for DeviceNet™, 16 Digital PNP Outputs, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, M8 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 16 digital PNP outputs, 24 VDC, Max. 0.5A per output (4A total)
