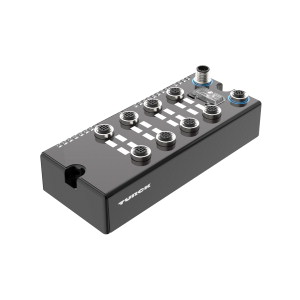

TURCK BLCDN-8M12L-8DI-P-8DI-P Block-IO

BL compact™ fieldbus station for DeviceNet™, 16 Digital PNP Inputs.

$590.50
Part Numbers
  • BLCDN-8M12L-8DI-P-8DI-P
  • 6811025
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 16 digital PNP inputs
  • 24 VDC
BL compact™ fieldbus station for DeviceNet™, 16 Digital PNP Inputs, On-machine Compact fieldbus I/O block, DeviceNet™ slave, 125 / 250 / 500 kbps, Two 5-pole M12 connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 16 digital PNP inputs, 24 VDC
