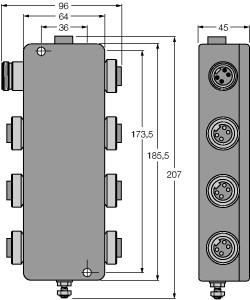

TURCK JBBS-49SC-M613/EX Foundation Fieldbus & PROFIBUS-PA
FOUNDATION fieldbus, IP67 junction box, 6-channel.
Overview
Features
- Junction box for wall mounting with stainless steel 7/8 flange connections
- Short-circuit protection per drop line/spur
- Integrated terminating resistor (activatable)
- Cable shielding: Capacitive or direct connection to housing potential selectable via switch
- Isolated support terminal for optional protective conductor incorporated in cable
- Powder-coated die-cast aluminium housing
- Pressure compensation element protects against condensation
- Connection of the housing potential via M5 x 1 bolt
- Entity and FISCO compliant according to IEC 60079-11
- "
Description
FOUNDATION fieldbus, IP67 junction box, 6-channel, , Junction box for wall mounting with stainless steel 7/8 flange connections, Short-circuit protection per drop line/spur, , Integrated terminating resistor (activatable), Cable shielding: Capacitive or direct connection to housing potential selectable via switch, Isolated support terminal for optional protective conductor incorporated in cable, Powder-coated die-cast aluminium housing, Pressure compensation element protects against condensation, Connection of the housing potential via M5 x 1 bolt, Entity and FISCO compliant according to IEC 60079-11, "
