TURCK PT500PSIG-1121-U6-DT043P Pressure Sensors

Pressure Transmitter, Ratiometric Output (3-Wire).

$194.70
Part Numbers
  • PT500PSIG-1121-U6-DT043P
  • 100003284
Manufactured
Availability
  • Usually ships in 5-8 weeks

Features

  • For mobile hydraulic applications
  • Ceramic measuring cell
  • Compact and robust design
  • Excellent EMC properties
  • Excellent accuracy and long-term stability
  • Complies with ISO 16750-2
  • Pressure range 0…500 psi rel.
  • 5 VDC ± 10 %
  • Ratiometric output 10…90 %

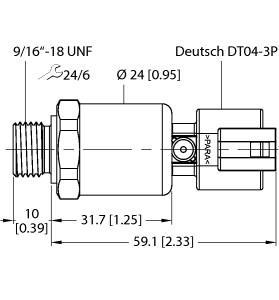

  • Process connection 9/16-18 UNF (SAE) male thread
  • Plug-in device
  • Deutsch DT04-3P
  • "
