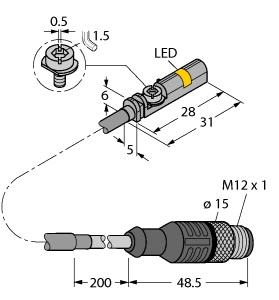

TURCK BIM-UNT-AP6X-0.5-RS4/S1765 Magnetic Sensors

Magnetic Field Sensor, for pneumatic cylinders.

$188.60
Part Numbers
  • BIM-UNT-AP6X-0.5-RS4/S1765
  • 4685990
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • For T-groove cylinders without mounting accessories
  • Optional accessories for mounting on other cylindrical housings.
  • One-hand mounting possible
  • Fine adjustment tool and stopper directly mountable on the sensor.
  • WeldGuard coated sensor housing
  • Cable protected by silicone hose up to 200 mm in front of the connector
  • DC 3-wire
  • 10…30 VDC
  • NO contact
  • PNP output
  • Pigtail with male end
  • M12 x 1
Magnetic Field Sensor, for pneumatic cylinders, Cable length (L) 0.5 m, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Fine adjustment tool and stopper directly mountable on the sensor., WeldGuard coated sensor housing, Cable protected by silicone hose up to 200 mm in front of the connector, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end, M12 x 1
