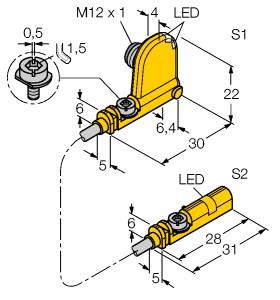

TURCK BIM-UNT-0.5-UNT-2AP6X3-H1141 Magnetic Sensors

Magnetic Field Sensor, For Pneumatic Cylinders.

$193.60
Part Numbers
  • BIM-UNT-0.5-UNT-2AP6X3-H1141
  • 4685719
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • For T-groove cylinders without mounting accessories
  • Optional accessories for mounting on other cylindrical housings.
  • One-hand mounting possible
  • Tool for fine adjustment and stopper for direct mounting on the sensor
  • Stable mounting
  • Optimally suited for monitoring two switching points on a cylinder
  • No Y-splitter required
  • Magneto-resistive sensor
  • 2x NO contacts
  • PNP output
  • DC 4‐wire
  • 10…30 VDC
Magnetic Field Sensor, For Pneumatic Cylinders, , For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Tool for fine adjustment and stopper for direct mounting on the sensor, Stable mounting, Optimally suited for monitoring two switching points on a cylinder, No Y-splitter required, Magneto-resistive sensor, 2x NO contacts, PNP output, DC 4‐wire, 10…30 VDC
