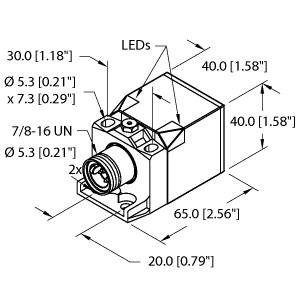

TURCK NI25U-CK40-ADZ30X2-B1131 W/BS2.1 Inductive Sensors

Inductive Sensor.

$244.30
Part Numbers
  • NI25U-CK40-ADZ30X2-B1131 W/BS2.1
  • 4280290
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • height 40 mm
  • Variable orientation of active face in 5 directions
  • Plastic
  • PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum view on supply voltage and switching state from any position
  • Factor 1 for all metals
  • Protection class IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • AC 2-wire
  • 20…250 VAC
  • DC 2-wire
  • 10…300 VDC
  • NO contact
  • 7/8" male connector
Inductive Sensor, Rated switching distance 25 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8" male connector
