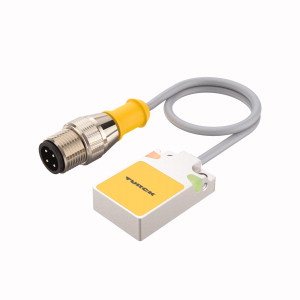

TURCK BI5-Q08-Y1X-0.2-RS4.21T Inductive Sensors

Inductive Sensor.

$141.30
Part Numbers
  • BI5-Q08-Y1X-0.2-RS4.21T
  • 4054090
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • height 8 mm
  • Active face on top
  • Metal
  • Zamak
  • nickel-plated
  • DC 2-wire
  • nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Cable with connector M12 x 1
  • ATEX category II 2 G
  • Ex zone 1
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1
Inductive Sensor, Rated switching distance 5 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable with connector M12 x 1, ATEX category II 2 G, Ex zone 1, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
