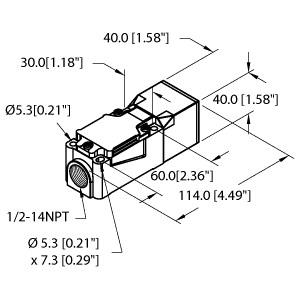

TURCK BI15U-CP40-AP6X2/S10 Inductive Sensors

Inductive Sensor.

$209.60
Part Numbers
  • BI15U-CP40-AP6X2/S10
  • 1623502
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • height 40 mm
  • Variable orientation of active face in 9 directions
  • Plastic
  • PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum view on supply voltage and switching state from any position
  • Thread
  • 1/2-14 NPT
  • Factor 1 for all metals
  • Protection class IP67
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • DC 3-wire
  • 10…30 VDC
  • NO contact
  • PNP output
  • Terminal chamber
Inductive Sensor, Rated switching distance 15 mm, Flush, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Thread, 1/2-14 NPT, Factor 1 for all metals, Protection class IP67, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, Terminal chamber
