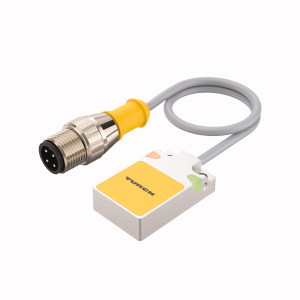

TURCK BI5U-Q08-AP6X2-0.2-RSE 4T-P7X2 Inductive Sensors

Inductive Sensor.

$177.80
Part Numbers
  • BI5U-Q08-AP6X2-0.2-RSE 4T-P7X2
  • 1608970
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Rectangular
  • height 8 mm
  • Active face on top
  • Metal
  • Zamak
  • nickel-plated
  • Factor 1 for all metals
  • Protection class IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • DC 3-wire
  • 10…30 VDC
  • NO contact
  • PNP output
  • Pigtail with male end M12 x 1
Inductive Sensor, Rated switching distance 5 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
