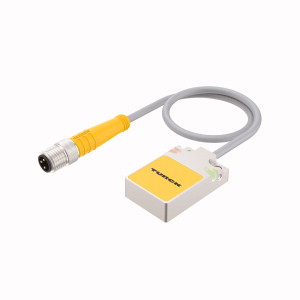

TURCK BI7-Q08-AN6X2-0.2-PSG3M Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$158.70
Part Numbers
  • BI7-Q08-AN6X2-0.2-PSG3M
  • 1601688
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • height 8 mm
  • Active face on top
  • Metal
  • Zamak
  • nickel-plated
  • Large sensing range
  • DC 3-wire
  • 10…30 VDC
  • NO contact
  • NPN output
  • Pigtail with male end M8 x 1
Inductive Sensor, With Increased Switching Distance, Rated switching distance 7 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Large sensing range, DC 3-wire, 10…30 VDC, NO contact, NPN output, Pigtail with male end M8 x 1
