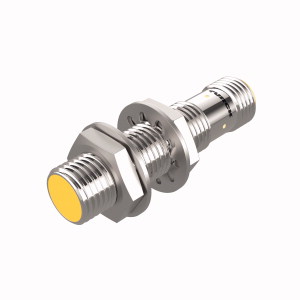

TURCK BI4-EM12E-AP45XLD-H1141 Inductive Sensors

Inductive Sensor, For Use in Vehicle Board Nets.

$175.10
Part Numbers
  • BI4-EM12E-AP45XLD-H1141
  • 1585000
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Threaded barrel
  • M12 x 1
  • Stainless steel
  • 1.4301
  • For vehicle board nets
  • 12 V and 24 V
  • Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
  • Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range
  • High protection class IP68/IP69K
  • Protection against salt spray and rapid temperature change
  • Laser engraved label
  • permanently legible
  • DC 3-wire
  • 8.4…65 VDC
  • NO contact
  • PNP output
  • M12 x 1 male connector
  • E1 type approval from German federal office for motor vehicles
Inductive Sensor, For Use in Vehicle Board Nets, Rated switching distance 4 mm, Flush, Threaded barrel, M12 x 1, Stainless steel, 1.4301, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2, Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature change, Laser engraved label, permanently legible, DC 3-wire, 8.4…65 VDC, NO contact, PNP output, M12 x 1 male connector, E1 type approval from German federal office for motor vehicles
