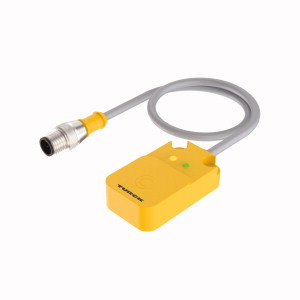

TURCK BI10-Q14-AP45X2LD-0.3-RS4T Inductive Sensors

Inductive Sensor, For Use in Vehicle Board Nets.

$160.80
Part Numbers
  • BI10-Q14-AP45X2LD-0.3-RS4T
  • 1584081
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Rectangular
  • height 14 mm
  • Active face on top
  • Plastic
  • PBT‐GF30‐V0
  • For vehicle board nets
  • 12 V and 24 V
  • Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
  • Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range
  • High protection class IP68/IP69K
  • Protection against salt spray and rapid temperature change
  • Laser engraved label
  • permanently legible
  • DC 3-wire
  • 8.4…65 VDC
  • NO contact
  • PNP output
  • Pigtail with M12 x 1 male connector
  • E1 type approval from German federal office for motor vehicles
Inductive Sensor, For Use in Vehicle Board Nets, Rated switching distance 10 mm, Cable length (L) 0.3 m, Flush, Rectangular, height 14 mm, Active face on top, Plastic, PBT‐GF30‐V0, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2, Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature change, Laser engraved label, permanently legible, DC 3-wire, 8.4…65 VDC, NO contact, PNP output, Pigtail with M12 x 1 male connector, E1 type approval from German federal office for motor vehicles
