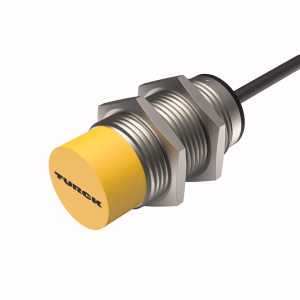

TURCK NI20-EM30-RP45XLD/S100 Inductive Sensors

Inductive Sensor, For Use in Vehicle Board Nets.

$199.00
Part Numbers
  • NI20-EM30-RP45XLD/S100
  • 1584028
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • M30 × 1.5 threaded tube
  • Stainless steel
  • 1.4301
  • For vehicle board nets
  • 12 V and 24 V
  • Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
  • Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range
  • High protection class IP68/IP69K
  • Protection against salt spray and rapid temperature change
  • Laser engraved label
  • permanently legible
  • DC 3-wire
  • 8.4…65 VDC
  • NC contact
  • PNP output
  • Cable connection
Inductive Sensor, For Use in Vehicle Board Nets, Rated switching distance 20 mm, Cable length (L) 2 m, Non-flush, M30 × 1.5 threaded tube, Stainless steel, 1.4301, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2, Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature change, Laser engraved label, permanently legible, DC 3-wire, 8.4…65 VDC, NC contact, PNP output, Cable connection
