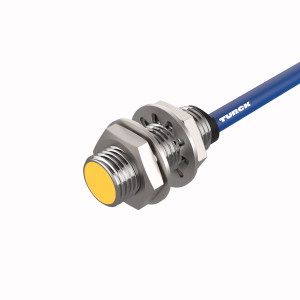

TURCK BIM-M12-Y0/S300 Magnetic Sensors

Magnetic Field Sensor, with extended temperature range.

$231.40
Part Numbers
  • BIM-M12-Y0/S300
  • 1070021
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Threaded barrel
  • M12 x 1
  • Chrome-plated brass
  • For temperatures up to 130°C
  • Magnet-inductive proximity sensor
  • Rated switching distance 90 mm with DMR31-15-5 magnet
  • DC 2-wire
  • nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
Magnetic Field Sensor, with extended temperature range, Rated switching distance 90 mm, Cable length (L) 2 m, Threaded barrel, M12 x 1, Chrome-plated brass, For temperatures up to 130°C, Magnet-inductive proximity sensor, Rated switching distance 90 mm with DMR31-15-5 magnet, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection
