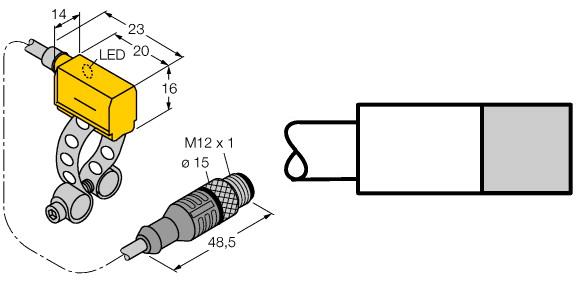

TURCK BIM-PST-Y1X-0.2-RS4.21T W/KLP80 Magnetic Sensors

Magnetic Field Sensor, for pneumatic cylinders.

$137.80
Part Numbers
  • BIM-PST-Y1X-0.2-RS4.21T W/KLP80
  • 1057095
Manufactured
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • Rectangular
  • height 16 mm
  • Active face in front
  • Plastic
  • PA12‐GF30
  • Magnetic-inductive sensor
  • DC 2-wire
  • nom. 8.2 VDC
  • Output according DIN EN 60947-5-6 (NAMUR)
  • Pigtail with male end
  • M12 x 1
  • ATEX category II 2 G
  • Ex zone 1
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1
Magnetic Field Sensor, for pneumatic cylinders, Cable length (L) 0.2 m, Rectangular, height 16 mm, Active face in front, Plastic, PA12‐GF30, Magnetic-inductive sensor, DC 2-wire, nom. 8.2 VDC, Output according DIN EN 60947-5-6 (NAMUR), Pigtail with male end, M12 x 1, ATEX category II 2 G, Ex zone 1, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
