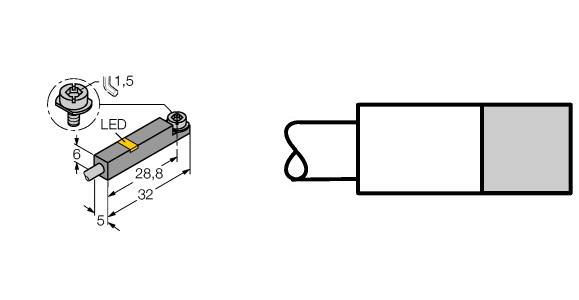

TURCK BIM-INT-Y1X 7M Magnetic Sensors

Magnetic Field Sensor, For Pneumatic Cylinders.

$130.40
Part Numbers
  • BIM-INT-Y1X 7M
  • 1056806
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • height 6mm
  • Plastic
  • PA12
  • Magnetic-inductive sensor
  • DC 2-wire
  • nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G
  • Ex zone 0
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1
Magnetic Field Sensor, For Pneumatic Cylinders, Cable length (L) 7 m, Rectangular, height 6mm, Plastic, PA12, Magnetic-inductive sensor, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
