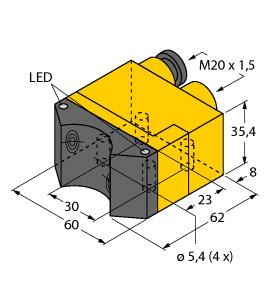

TURCK NI4-DSU35TC-2Y1X2 Inductive Sensors

Inductive Sensor, For Rotary Actuators.

$213.40
Part Numbers
  • NI4-DSU35TC-2Y1X2
  • 1051004
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • housing DSU35
  • Plastic
  • PP-GF30-VO
  • Two outputs for monitoring the position of rotary actuators
  • Mounting on all standard actuators
  • DC 2-wire
  • nom. 8.2 VDC
  • 2 outputs acc. to DIN EN 60947-5-6 (NAMUR)
  • Terminal chamber
  • ATEX category II 2 G
  • Ex zone 1
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1
Inductive Sensor, For Rotary Actuators, Rated switching distance 4 mm, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, DC 2-wire, nom. 8.2 VDC, 2 outputs acc. to DIN EN 60947-5-6 (NAMUR), Terminal chamber, ATEX category II 2 G, Ex zone 1, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
