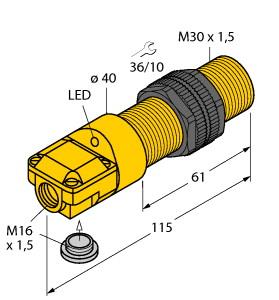

TURCK BI10-P30SR-Y1X/S85 Inductive Sensors

Inductive Sensor, With Increased Temperature Range.

$207.20
Part Numbers
  • BI10-P30SR-Y1X/S85
  • 1023324
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • 2 cable entries (axial
  • radial)
  • Threaded barrel
  • M30 x 1.5
  • Plastic
  • ABS
  • Temperatures up to +85 °C
  • DC 2-wire
  • nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Terminal chamber
  • ATEX category II 2 G. Ex-zone 1
  • ATEX category II 1 D
  • Ex-zone 20 for temperatures up to +70 °C
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HTF1
Inductive Sensor, With Increased Temperature Range, Rated switching distance 10 mm, Cable length (L) 2 m, Flush, 2 cable entries (axial, radial), Threaded barrel, M30 x 1.5, Plastic, ABS, Temperatures up to +85 °C, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Terminal chamber, ATEX category II 2 G. Ex-zone 1, ATEX category II 1 D, Ex-zone 20 for temperatures up to +70 °C, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1
