TURCK NI10-G18SK-Y1X Inductive Sensors

Inductive Sensor.

$133.00
Part Numbers
  • NI10-G18SK-Y1X
  • 40161
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

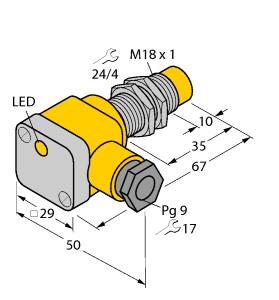

  • M18 × 1 threaded barrel
  • Chrome-plated brass
  • DC 2-wire
  • nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Terminal chamber
  • ATEX category II 1 G
  • Ex zone 0
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1
Inductive Sensor, Rated switching distance 10 mm, Non-flush, M18 × 1 threaded barrel, Chrome-plated brass, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Terminal chamber, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
